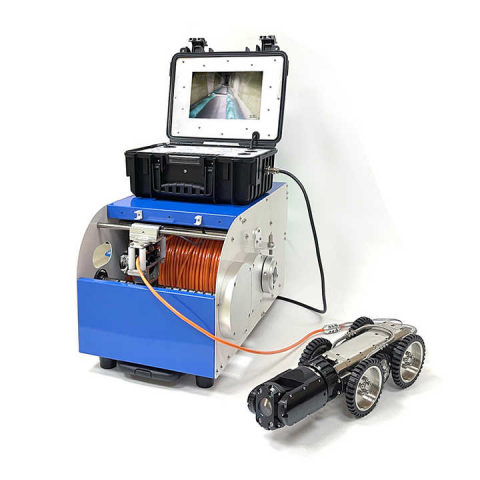

GT108AC Pipe Inspection Robot – PTZ Camera 360°, 150m Cable, 6-Wheel Crawler, Auto Reporting, Waterproof IP68

GT108AC – Advanced Crawler Robot for Pipe, Tank, and Ventilation Duct Inspection with 360° PTZ Camera and Auto Reporting

The GT108AC is a next-generation pipe inspection and cleaning robot, designed for high-precision industrial applications such as sewer lines, chemical tanks, food-grade ventilation systems, and underground pipelines. Built from aviation-grade aluminum and equipped with a fully waterproof IP68-rated PTZ camera, it ensures optimal performance in the most challenging and hazardous environments.

This professional-grade robotic system is essential for utility companies, industrial maintenance providers, municipal services, kitchen exhaust specialists, and any facility requiring thorough visual diagnostics inside pipelines or ventilation ducts.

🔍 Real-Time Visual Monitoring with 360° PTZ Camera and Zoom

The robot features a PTZ camera with full 360° horizontal rotation and 220° vertical tilt, enhanced with both optical and digital zoom, auto-focus, and electronic leveling. The camera ensures crystal-clear imaging even in poor lighting conditions, thanks to its front, ambient, and rear LED lighting, all adjustable in intensity.

All footage can be captured and stored locally with auto-generated reports in PDF format, including distance traveled, location, and inspection timestamps. The onboard system supports remote control via a 10-inch display unit or tablet interface, with multilingual UI (English, Spanish, Chinese, and more).

⚙️ Durable Build, Strong Traction, and Complete System Control

The GT108AC robot is equipped with a six-wheel traction system with high-grip rubber tires (110 mm standard, 150 mm optional), capable of climbing up to 45° inclines and maneuvering over pipe joints and bends. The robot can handle pipe diameters ranging from 200 mm to 3500 mm.

It comes with a 150-meter Kevlar-protected cable, managed by a motorized reel with electronic meter counting, brake system, and an emergency stop button. The power supply operates at 110V or 220V, making it flexible for global industrial use.

✅ Applications: From Sewers to Commercial Kitchens

The GT108AC robot has been successfully deployed in:

• Municipal sewer and pipeline inspections

• Tank and oil/waste sludge cleaning

• Food-grade ventilation duct inspections (HACCP compliance)

• Restaurant and hospital kitchen exhaust duct inspection

• Silos and food-processing tube maintenance

This robot not only improves safety by eliminating human entry into confined or hazardous spaces, but it also enhances efficiency, reporting accuracy, and operational compliance.

💼 What’s Included in the Standard Package:

• GT108AC crawler robot body

• Dual PTZ cameras (front & rear)

• 10" control display with multilingual interface

• 150m Kevlar cable reel with motorized rewind

• Power and data cables

• Remote control

• Toolkit and cleaning accessories

• Certificate, safety fuses, warranty documents
