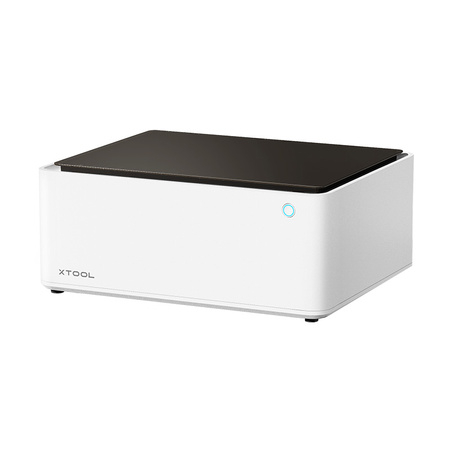

Laser Engraving Machine 3 în 1 xTool M1 10W for professional engraving, cutting and personalization.
Delivery date: 4 business days
Laser Engraving Machine 3 în 1 xTool M1 10W is a xTool laser engraving and cutting system. The page lists the documented working area, power, supported materials, operating parameters and supplied equipment for accurate comparison before purchase.

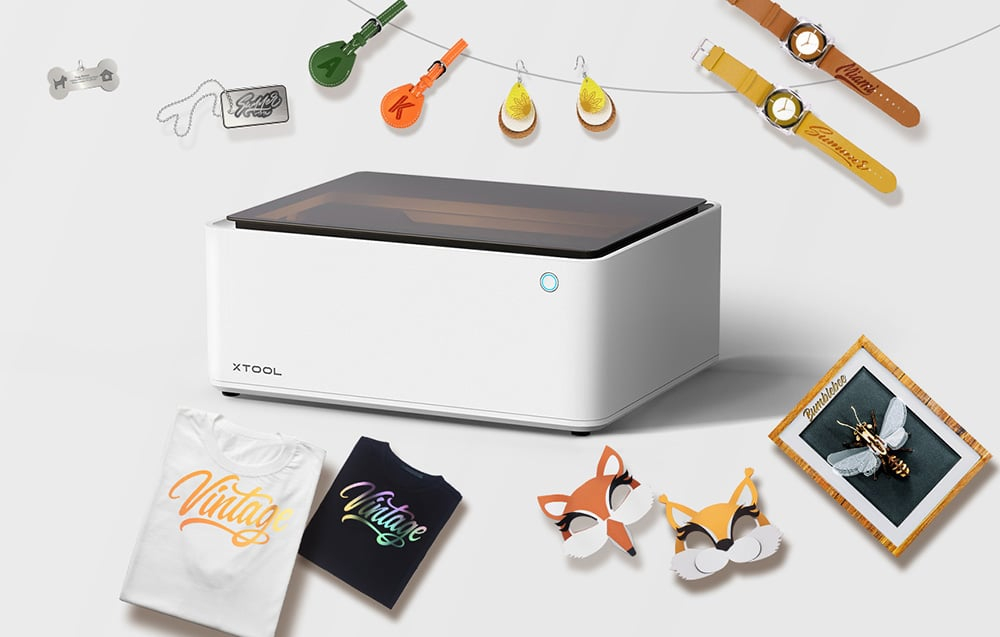

Suitable for personalization, signage, prototypes, creative production and small-series work, according to the materials and settings approved by the manufacturer.
The technical data below comes from the supplier sheet for this exact model. Actual results depend on the material, thickness, focus, tooling, ventilation and selected process parameters.
| Manufacturer | xTool |
|---|---|
| Model | M1 10W |
| Putere de ieșire laser | 10W |
| Putere electrică de intrare | 38W |
| Sursă laser | Diodă laser (Lungimea de undă: 455nm) ; |
| Durata de viață | 8000h ~ 10000h |
| Adâncimea maximă de tăiere | 10W 8mm (Basswood) |
| Viteza maximă de gravură | 250mm/sec. |
| Precizia de gravare | 0.01mm |
| Noise level | <60db |
| Zona de lucru pentru laser | 385 x 300mm |
| Zona de lucru pentru lamă | 365 x 300mm |
| Înălțimea maximă a materialului de lucru | 16mm (fără ridicare) |
| Mod de focalizare | AF vizual AI / recunoașterea materialului AF / setarea materialului AF. |
| Cameră | De înaltă rezoluție, ultra-wide-angle |
| Număr de pixeli | 16MP |
| Rezoluția imaginii | 500Dpi |
| Interfețe de conectare | Wi-Fi, USB |
| Sistem de operare | Windows / macOS / Android / iOS |
| Software de control | Laserbox Software / Laserbox App |
| Tipuri de fișiere | SVG, DXF, JPG, JPEG, PNG, BMP, TIF, CR2, etc. |
| Dimensiunea produsului (L x l x î) | 557 x 453 x 230 mm |
| Greutatea produsului | 9,8 kg |
Install on a stable surface, provide the extraction and ventilation required for the processed material, perform calibration and use appropriate protective equipment.
Technology: Laser cu diodă
Product type: Gravator laser
Conectivitate: USB / Wi-Fi
