Audio mixer BOYA BY-AM1 with two USB channels

The BOYA BY-AM1 is a dual-channel audio mixer designed to provide a compact mixing solution for XLR microphones and instruments with 6.35mm outputs. Compatible with computers and laptops, this mixer allows easy control of input devices and transmits high-quality audio signals to your computer.

Key Features:

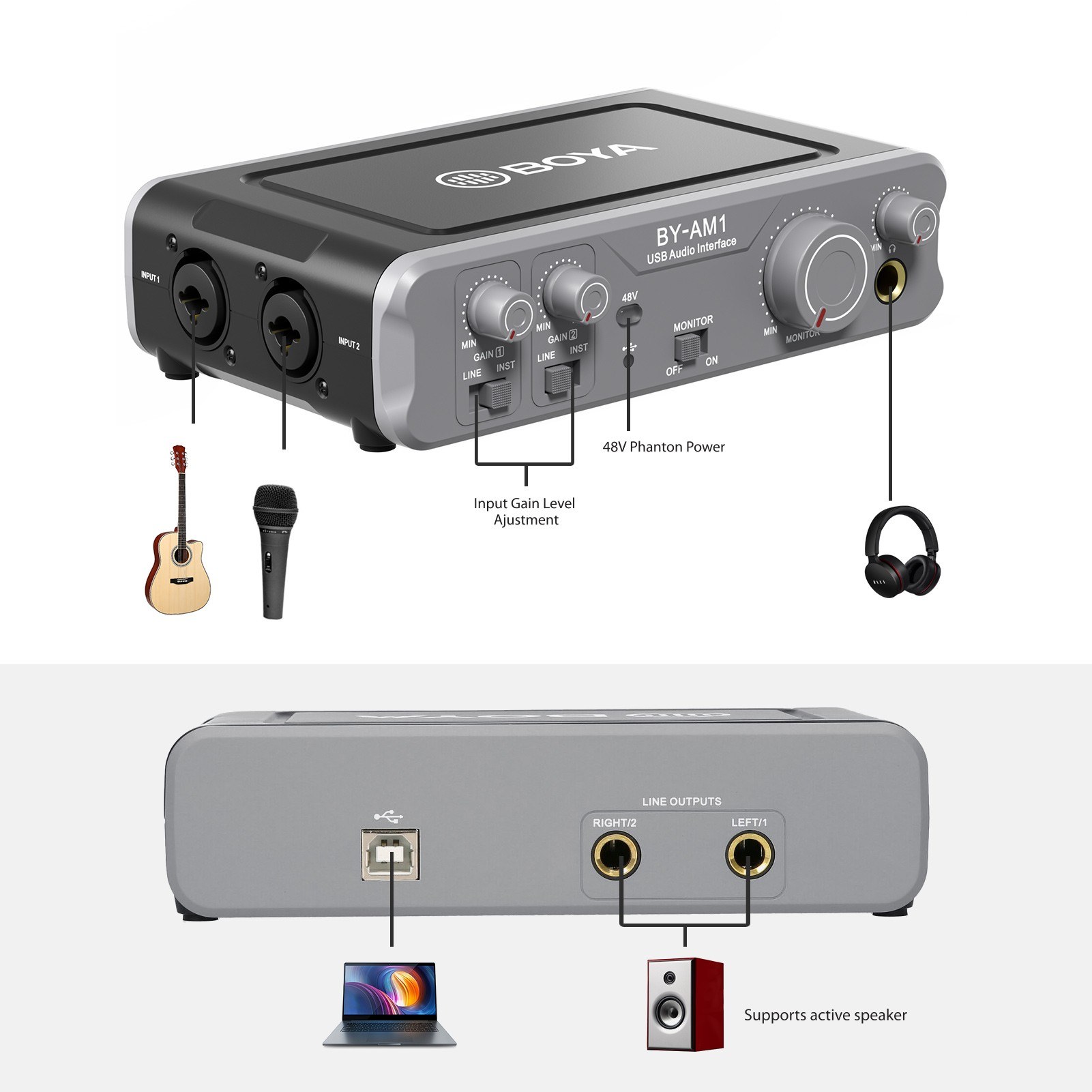

• Combined XLR/6.35mm Inputs: Accepts signals from dynamic or condenser microphones and musical instruments like electric guitars and basses.
• Zero-Latency Monitoring: 6.35mm headphone jack and included 6.35mm to 3.5mm TRRS adapter for real-time monitoring without delays.
• 48V Phantom Power: Provides necessary power for condenser microphones via XLR input.
• USB 2.0 Connection: Ensures wide compatibility with various devices and fast data transfer.
• Compact Design: Easy to mount on a tripod or other accessories with the integrated 1/4" thread.

Ideal Applications (English):

• Podcasting and Live Streaming: Provides precise sound control for high-quality broadcasts.
• Music Recording: Perfect for musicians and vocalists aiming for high-fidelity sound capture.
• Multimedia Production: Ideal for creating professional audio-video content.

Why Choose BOYA BY-AM1?
The BOYA BY-AM1 is a versatile and portable solution for all your audio recording needs, delivering top-quality performance in a compact, user-friendly format.

Specifications:
Brand: BOYA
Model: BY-AM1
Frequency response: 20Hz-20kHz
Maximum Input Level: microphone input--9dBu, line input--15dBu, instrument inputs--8dBu(at minimum gain)
Gain Range: 50dB (line inputs)
Impedance: 47kΩ (line inputs)
THD: <0.01%
S/N: 6dBu(headphone output), 10dBu(line/monitor outputs)
Sampling Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
USB Connection: USB2.0 (USB-B connector)
Power: Power from the computer
Mixer dimensions: 16 * 9.5 * 4cm

Weight: 383g
Package dimensions: 19.5 * 18 * 6cm

Total weight: 570g

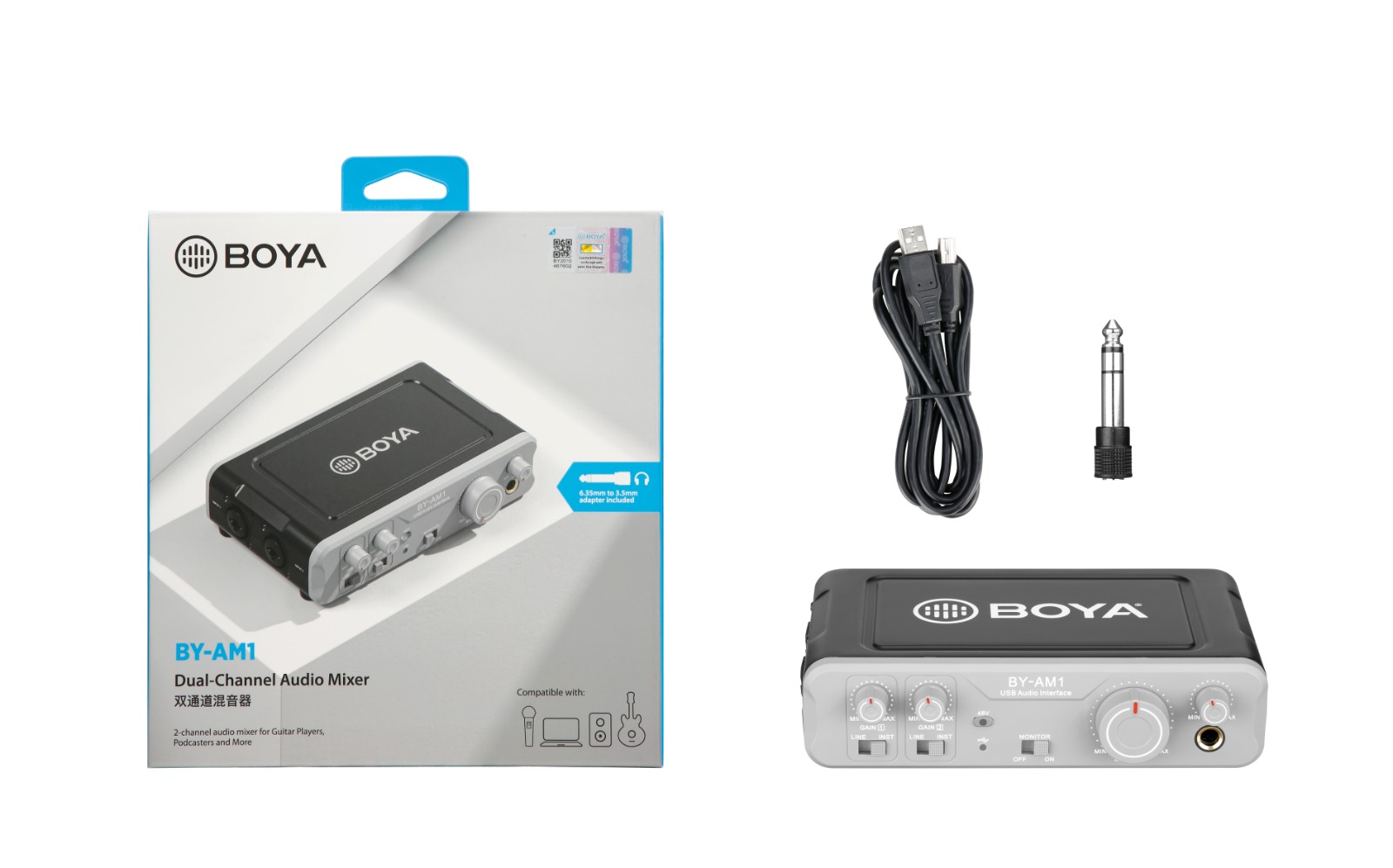

The package contains:
1 * Audio Mixer
1 * USB Cable
1 * 6.35mm to 3.5mm TRRS adapter
1 * User Manual
